CNC-GTQ

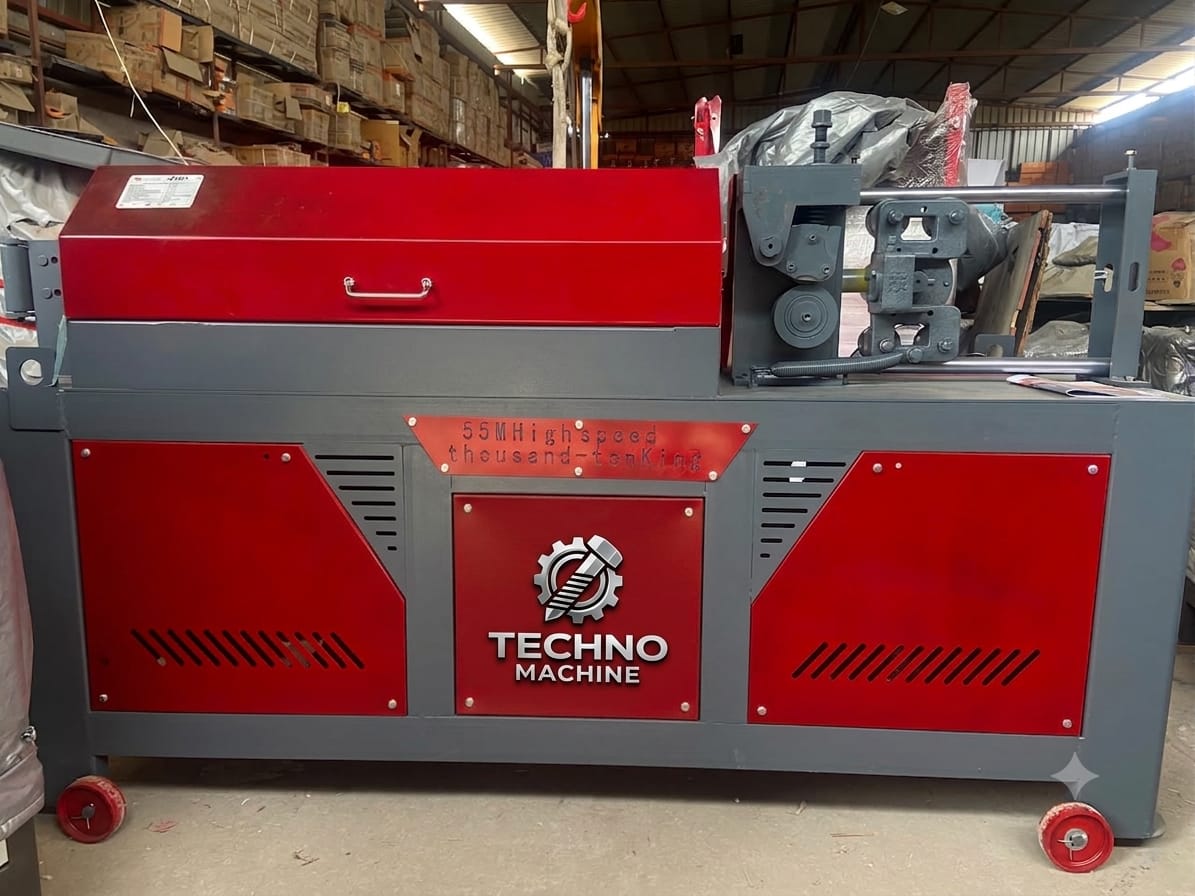

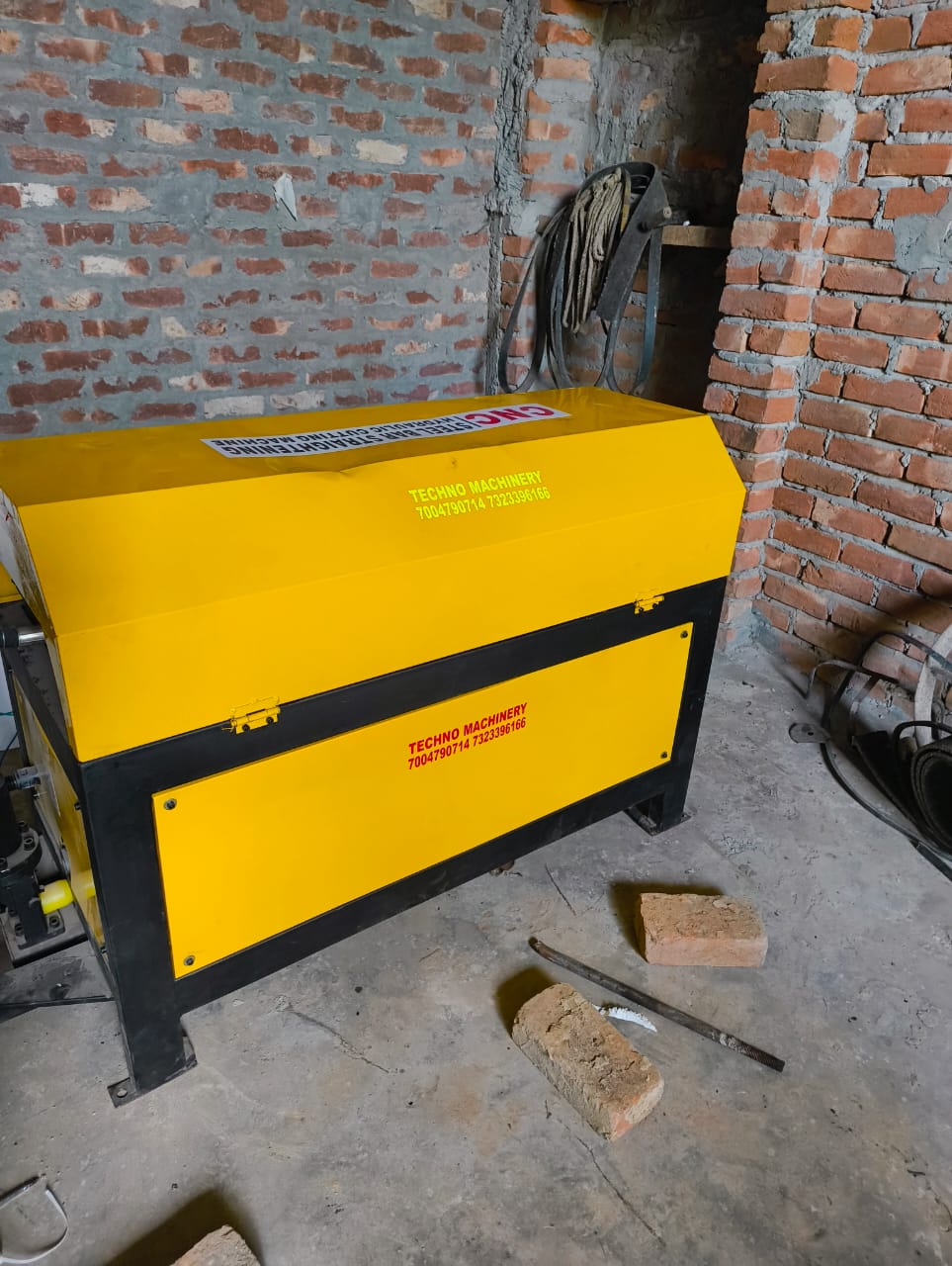

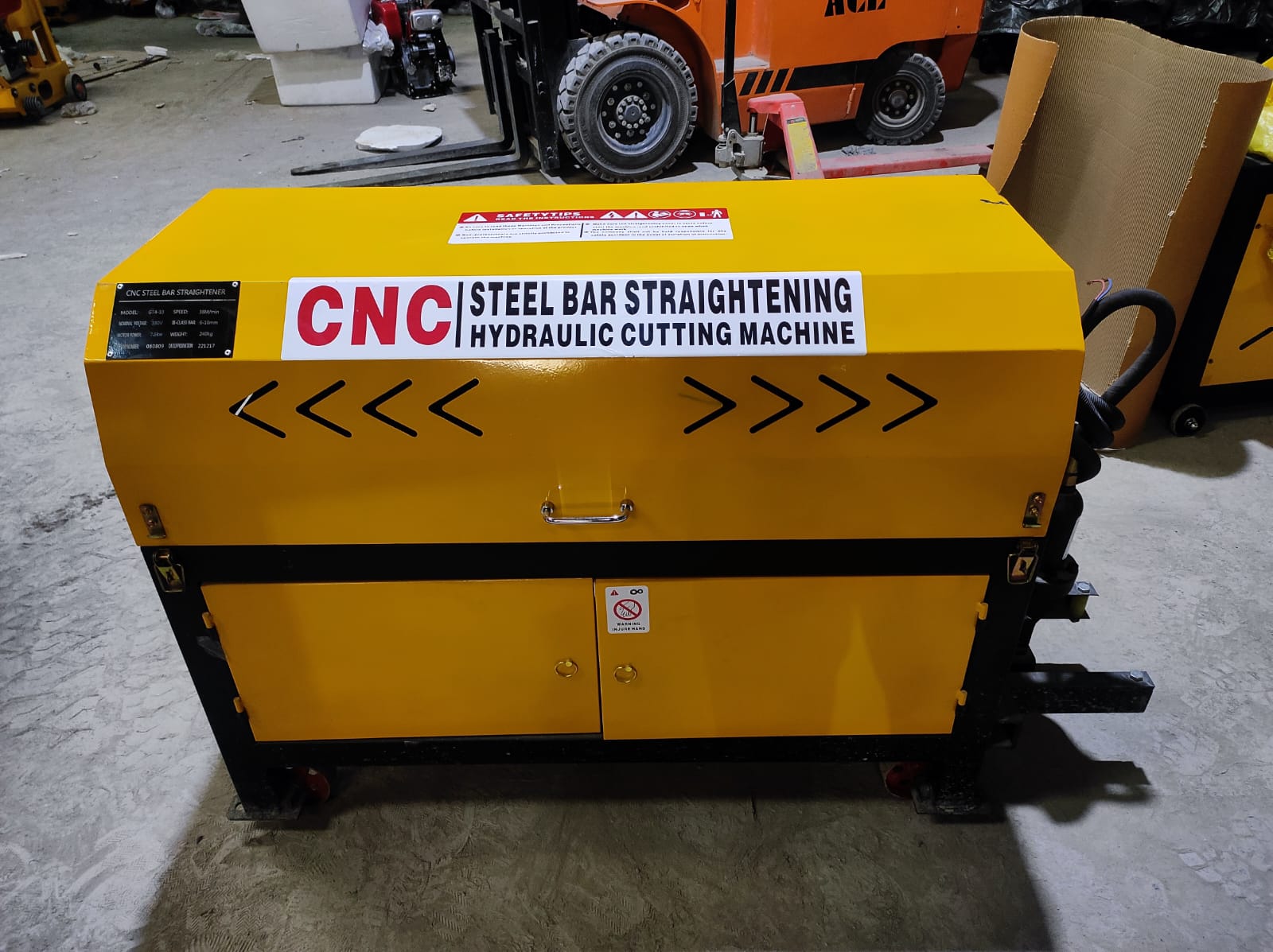

CNC Steel Bar Straightening & Cutting Machine
Fully automatic CNC steel bar straightening and hydraulic cutting machine. Processes coiled rebar into straight bars at high speed with precise length control. Ideal for large-scale reinforcement fabrication.
Key Features
- Fully automatic CNC control
- High speed straightening & cutting
- Precise length control ±1 mm
- Hydraulic cutting for clean edges
- Processes coiled rebar continuously
Technical Specifications
| Parameter | Details |
|---|---|
| Straightening Capacity | 6 – 14 mm |
| Straightening Speed | 40 – 80 m/min |
| Cutting Method | Hydraulic |
| Length Accuracy | ±1 mm |
| Motor Power | 7.5 kW |
| Voltage / Frequency | 415 V / 50 Hz / 3 Phase |
| Weight | 1200 kg |
Applications
Reinforcement FabricationBuilding ConstructionBridge & InfrastructurePrecast Concrete PlantsIndustrial Projects
